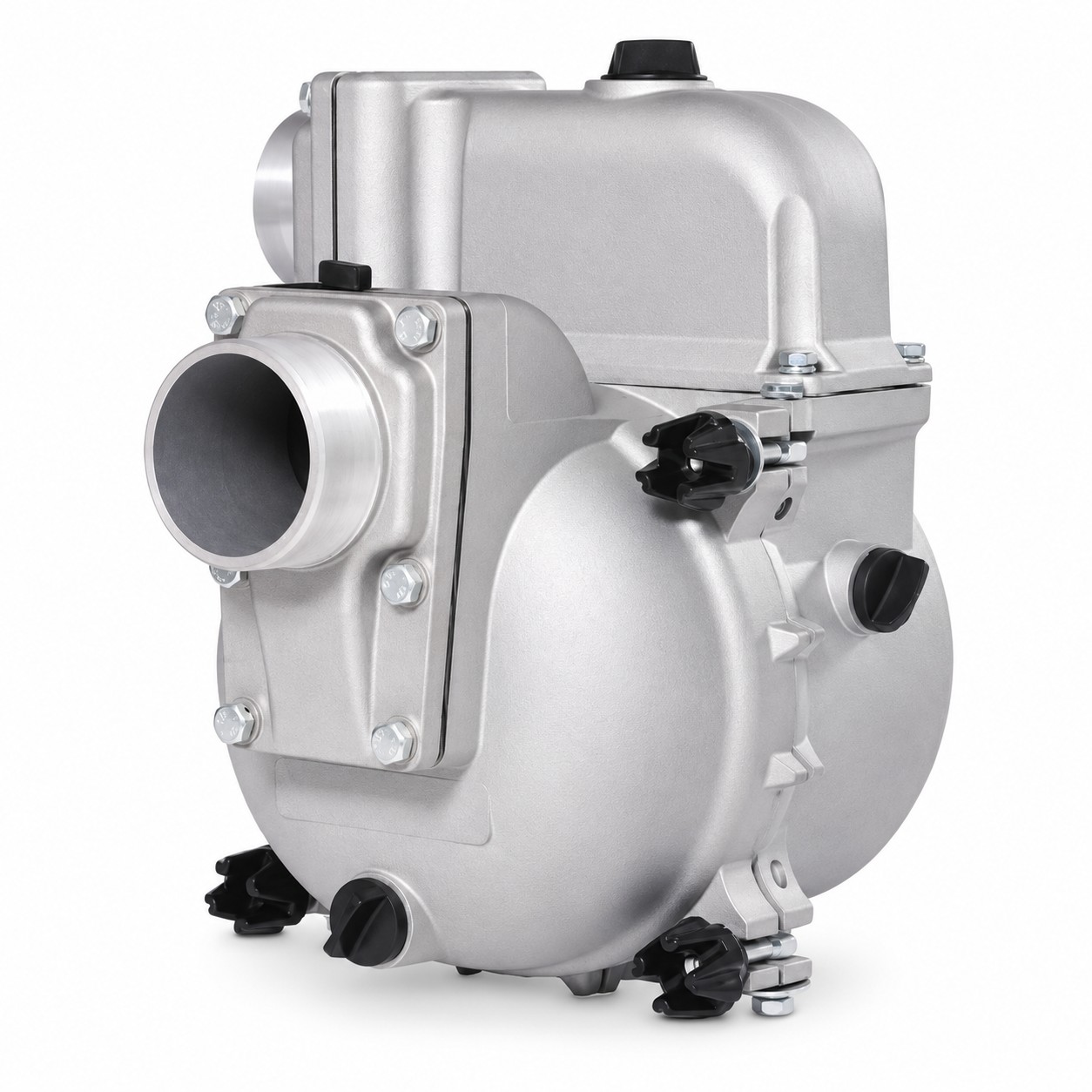

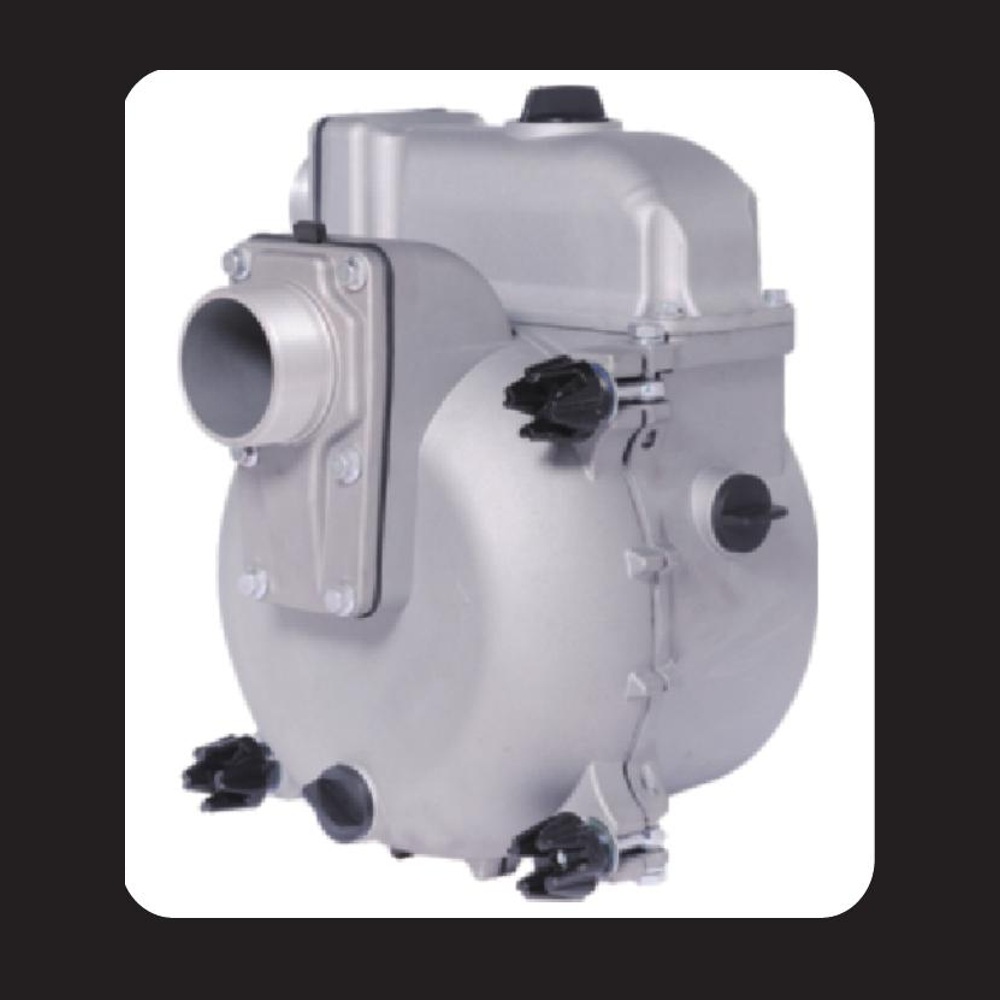

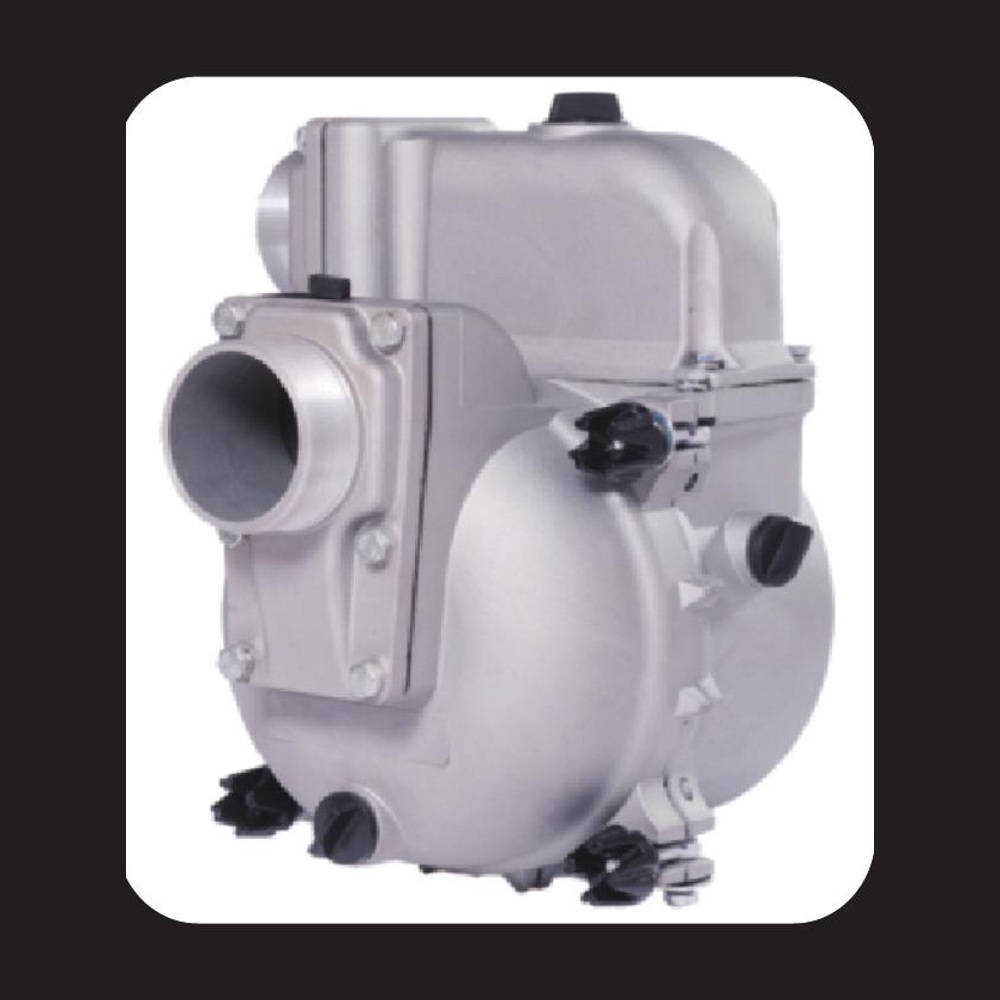

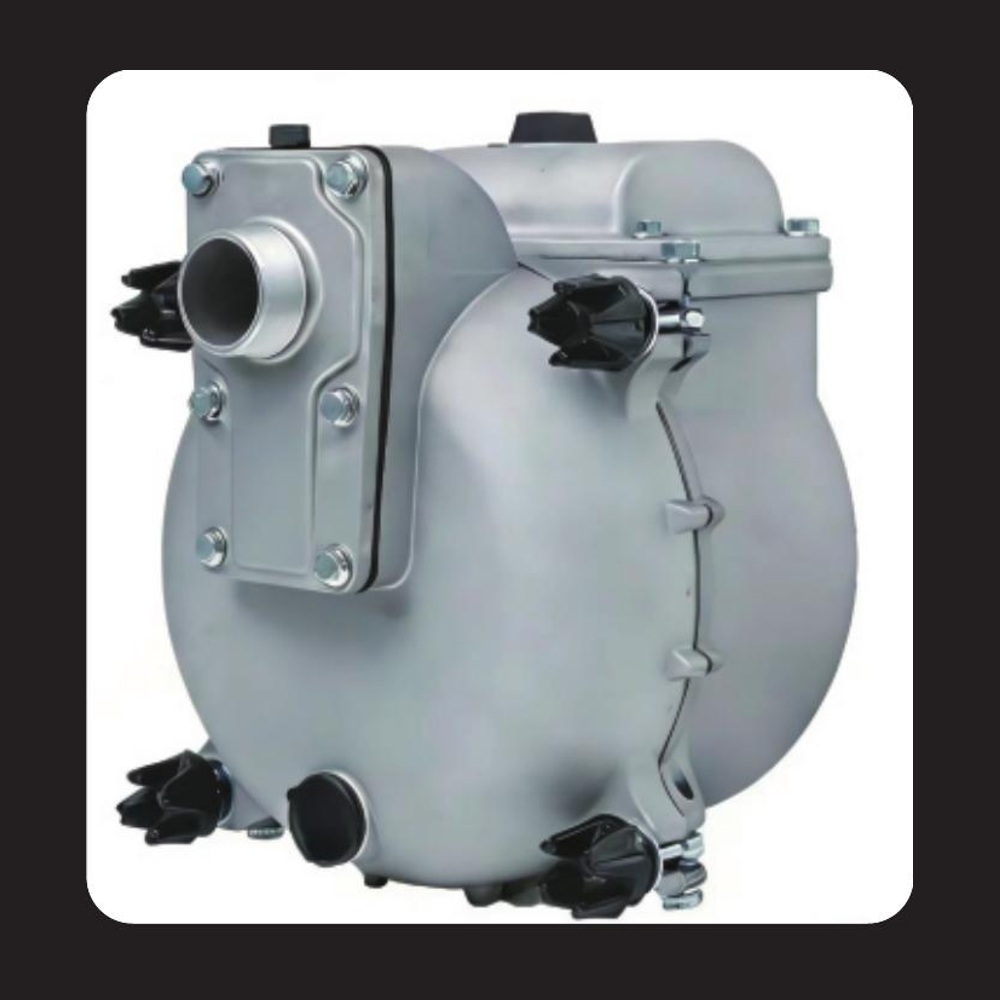

Mud & Slurry Pumps
Mud & Slurry Pumps
28–30 m listed maximum head · 42–110 m³/h listed maximum flow
Price on request
Request current pricing, availability and delivery terms.
Request a quote for this pumpBuying for a project or distribution? Include your model, quantity and destination for a tailored quotation.
How ordering worksMud & Slurry Pumps
Aluminum alloy, ductile iron and silicon carbide mechanical seals for mud and slurry applications. The catalog lists solids diameters of 20 mm for the 2-inch model and 27 mm for the 3- and 4-inch models.

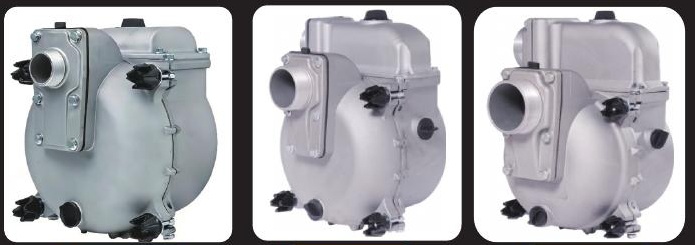

Model comparison
| Configuration | Model | Max. head (m) | Max. flow (m³/h) | Max. suction lift (m) |
|---|---|---|---|---|
| 2-inch | QGZ50-42-30 | 30 | 42 | 8 |
| 3-inch | QGZ80-80-28 | 28 | 80 | 8 |
| 4-inch | QGZ100-110-30 | 30 | 110 | 8 |
Values above are nominal maximum values transcribed from the supplier catalog, PDF page 18 (printed page 15). Maximum flow and maximum head are separate limits, not a guaranteed simultaneous duty point. Request the pump curve and configuration-specific tolerances before selection.
Request the right configuration
Send the model, quantity, liquid type, required flow and head, drive requirements, and delivery country. Confirm whether your quotation includes a bare pump, engine, frame, hoses or accessories. Images illustrate supplier configurations; the final scope is defined by your quotation.
Ordering
Pricing, availability, freight and lead time are confirmed by quotation. Online checkout becomes available for priced, stocked configurations. Bulk, OEM and project requirements can be discussed with our sales team through the inquiry form.
